Military Products

    122 mm ROCKETS :       (details)
    • 122 mm ROCKET ;
    • 122 mm EXTENDED RANGE ROCKET ( 40 ๗ 45 Km ) .
         WARHEADS FOR 122 mm ROCKETS :       (details)
    • HE ( TGAF - 5, COMPOSITION B ) ;
    • PREFORMED ELEMENTS .
         FUZES FOR 122 mm ROCKETS :       (details)
    • MULTIPLE FUNCTIONS FUZE MFF - 2T NEW ;
    • MRV - U ;
    • MRV - UBM FOR EXTENDED RANGE ROCKETS ;
    • PROXFU 2/PP ( collaboration with SC MIRSAND SRL) ;
    • PROXFU 2/FCC ( collaboration with SC MIRSAND SRL) .

    122 mm ARTILERY AMMUNITION :       (details)
    • 122 mm ILLUMINATING ROUND FOR THE 1938 MODEL HOWITZER NEW ;
    • 122 mm ILLUMINATING ROUND FOR THE D - 30 NEW ;
    • 122 mm HE ROUND FOR THE 1938 MODEL HOWITZER ;
    • 122 mm HE ROUND FOR THE D - 30 .
         FUZES FOR ARTILERY :       (details)
    • FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
    • FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS .

    ILLUMINATING BOMBS NEW :       (details)
    • 81 / 82 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 120 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 60 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT or time fuze PTF-3T ;
    • 81 / 82 mm ILLUMINATING BOMBS with superior performance (research - development) .
         FUZES FOR ILLUMINATING BOMBS :       (details)
    • TIME FUZE T – 1 for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ; ;
    • ELECTRONIC TIME FUZE ETF – 1MT for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ;
    • TIME FUZE PTF-3T for ammunition 60 mm with illuminating bomb (research - development) ;

    SMOKE AND MASKING SMOKE BOMBS NEW :       (details)
    • 81 / 82 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 120 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 60 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) .
         FUZE FOR SMOKE AND MASKING SMOKE BOMBS :       (details)
    • IMPACT FUZE PDF-4T for ammunition 60 mm, 81 / 82 mm, 120 mm with explosive or smoke and masking bomb (research - development) .

    GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS :       (details)
    • SMOKE AND MASKING GRENADE GFM - 76 (collaboration with S.C. Pro Optica S.A.) ;
    • Ammunition 40X47 mm with EXPLOSIVE GRENADE with self-destruction and ammunition 40X47 mm with INERT GRENADE;
    • IGNITION CAPS ;
    • TRACERS ;
    • TORCHES: 60 mm, 81 / 82 mm, 120 mm, 122 mm ;
    • PRIMER SCREWS ;
    • 1lb AND 1/2 LB TNT BOOSTERS .




                WARHEADS for 122 mm ROCKETS

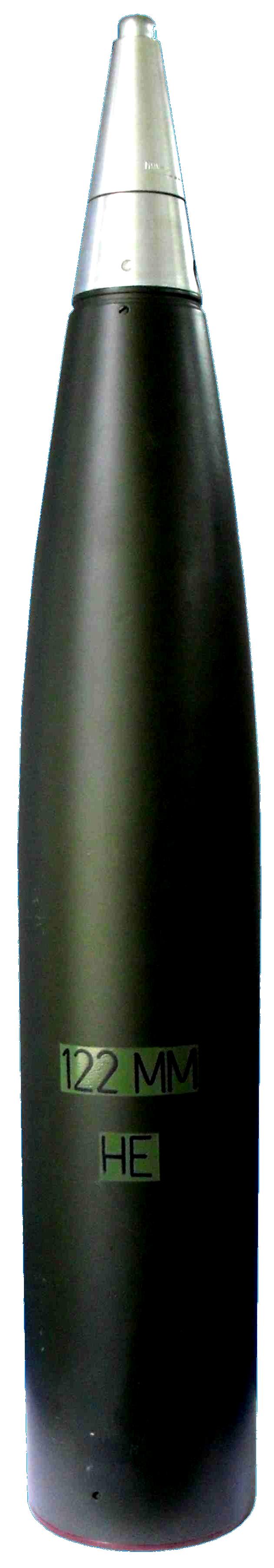

  • 122 mm HE ( HIGTH EXPLOSIVE )
    It IS THE CLASSICAL WARHEAD FOR THE 122 ROCKETS.
    TECHNICAL CHARACTERISTICS:
    - CALIBER 122 mm ;
    - COMPONENT LENGTH 605 mm ;
    - COUPLING THREAD FOR THE FUSE SP M 45X2 ;
    - COMPONENT BODY WEIGHT ~12,05 Kg ;
    - WAR COMPONENT WEIGHT (CHARGED) ~18,4 Kg ;
    - EXPLOSIVE COMPONENT WEIGHT (TGAF-5) 6,35 Kg ;
    - DETONATOR AIX 1 ;
    - DETONATOR WEIGHT ~0,1 Kg ;
    - OPERATIONAL TEMPERATURES RANGE -400C ๗ + 600.C ;
    - LETHAL RANGE (LETHAL AREA) MIN. 25 m (MIN.1900M2);
    - SPLINTERS NUMBER MIN. 2000 BUC.;
    - FUSE EQUIPPING MRV-U, PROXIMITY, MULTIFUNCTION .

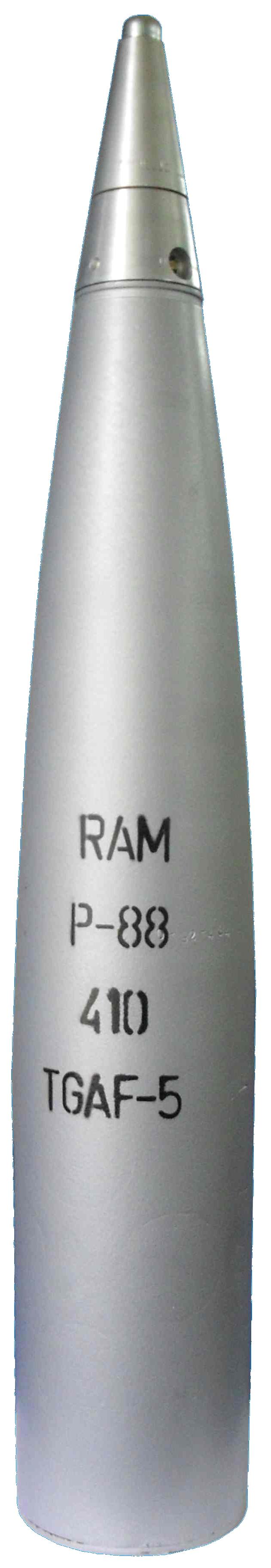

  • 122 mm HE WITH PREFORMED ELEMENTS
    THE 122 mm WARHEAD WITH PREFORMED ELEMENTS CAN REPLACE CLASSICAL HE WARHEAD
    TECHNICAL CHARACTERISTICS:
    - BURSTING HEIGHT (ADJUSTABLE IN TWO STEPS) 1 ๗ 30 m ;
    - MASS OF WARHEAD 18.4 Kg ;
    - MASS OF EXPLOSIVE CHARGE (TGAF–5) 5.4 Kg ;
    - NUMBER OF PREFORMED ELEMENTS 12 PCS ;
    - PIERCING THICKNESS (STEEL SHEET) AT 7 M 20 mm ;
    - LETHAL RANGE: 30 m ;
    - LETHAL SURFACE (2,800 SQ.M)
    - OPERATIONAL TEMPERATURES RANGE -400C ๗ + 600.C ;
    - FUSE EQUIPPING MRV-U, PROXIMITY, MULTIFUNCTION .
