Military Products

    122 mm ROCKETS :       (details)
    • 122 mm ROCKET ;
    • 122 mm EXTENDED RANGE ROCKET ( 40 ÷ 45 Km ) .
         WARHEADS FOR 122 mm ROCKETS :       (details)
    • HE ( TGAF - 5, COMPOSITION B ) ;
    • PREFORMED ELEMENTS .
         FUZES FOR 122 mm ROCKETS :       (details)
    • MULTIPLE FUNCTIONS FUZE MFF - 2T ;
    • MRV - U ;
    • MRV - UBM FOR EXTENDED RANGE ROCKETS ;

    122 mm ARTILERY AMMUNITION :       (details)
    • 122 mm ILLUMINATING ROUND FOR THE D - 30 ;
    • 122 mm HE ROUND FOR THE D - 30 .
         FUZES FOR ARTILERY :       (details)
    • FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
    • FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS .

    ILLUMINATING BOMBS :       (details)
    • 81 / 82 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 120 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 60 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT or time fuze PTF-3T ;
    • 81 / 82 mm ILLUMINATING BOMBS with superior performance (research - development) .
         FUZES FOR ILLUMINATING BOMBS :       (details)
    • TIME FUZE T – 1 for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ; ;
    • ELECTRONIC TIME FUZE ETF – 1MT for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ;
    • TIME FUZE PTF-3T for ammunition 60 mm with illuminating bomb (research - development) ;

    SMOKE AND MASKING SMOKE BOMBS :
    • 81 / 82 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 120 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 60 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) .
         FUZE FOR SMOKE AND MASKING SMOKE BOMBS :
    • IMPACT FUZE PDF-4T for ammunition 60 mm, 81 / 82 mm, 120 mm with explosive or smoke and masking bomb (research - development) .

    GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS :       (details)
    • 76 mm IR / RP SMOKE GRENADE ( Collaboration with DIEHL Defence Germany ) ;
    • 76 mm SMOKE GRENADE LAUNCHER SGL-1TH ;
    • Ammunition 40X47 mm with EXPLOSIVE GRENADE with self-destruction and ammunition 40X47 mm with INERT GRENADE;
    • IGNITION CAPS ;
    • TRACERS ;
    • TORCHES: 60 mm, 81 / 82 mm, 120 mm, 122 mm ;
    • INFRARED FLARE IRF-TH;
    • PRIMER SCREWS ;
    • 1lb AND 1/2 LB TNT BOOSTERS ;
    • CUMMULATIV SHAPED CHARGE .





























      GRENADES AND DIFFERENT TYPES OF
                PYROTECHNIC ELEMENTS
  • 76 mm IR / RP SMOKE GRENADE ( Collaboration with DIEHL Defence Germany )
    Features : • Multispectral visual & screening capability
    • Fast reaction
    • Non carcinogenic & low toxic
    • Use for combat & training
    • NATO-proven and in service

    Technical Data :
    Length 170 mm , Total weight ? 1,2 kg , Smoke material IR/RP Multi Spectral Screening Smoke , Weight of smoke material ? 800 g , Launching distance (45° elevation) 15 - 50 m , Recoil force <10,5 k N ; Reaction time ? 3,5 s , Smoke duration ? 30 s (VIS), ? 20 s (IR) , Size of screen Width ? 60 m (Salvo of eight grenades) , Height ? 6 m (Salvo of eight grenades) , Wave band covered 0,4 - 0,7 µm VIS , 0,7 - 1,6 µm Near IR , 3,0 - 5,0 µm Mid IR , 8,0 - 14 µm Far IR , Hazard class 1,4G UN 0303 , Temperature range -35°C to +63°C (Function) , -54°C to +71°C (Operational Storage) , Smoke material IR/RP Multi Spectral Screening Smoke , Weight of smoke material ? 800 g , launching distance (45° elevation) 15 - 50 m , Recoil force <10,5 k N , Reaction time ? 3,5 s , Smoke duration ? 30 s (VIS), ? 20 s (IR) , size of screen Width ? 60 m (Salvo of eight grenades) , Height ? 6 m (Salvo of eight grenades) , Wave band covered 0,4 - 0,7 µm VIS , 0,7 - 1,6 µm Near IR , 3,0 - 5,0 µm Mid IR , 8,0 - 14 µm Far IR , hazard class 1,4G UN 0303 , Temperature range -35°C to +63°C (Function) , -54°C to +71°C (Operational Storage) .

  • 76 mm SMOKE GRENADE LAUNCHER SGL-1TH
    Purpose :
    The launcher is mounted on combat vehicles (tank type, or similar exceeding 6 m in length) and together with the 76 mm IR/RP smoke grenade SG-1TH is intended to provide protection for armoured vehicles against weapons using active means with illumination of radiolocation or laser. The 76 mm smoke grenade launcher SGL-1TH can be used with Warning and Protection System for Extended Spectrum Laser and Radar illumination (SAPLAR*) for 76 mm IR/RP Smoke Grenade SG-1TH. This product acronym is CAPLAR-SGL-1TH. The system is designed to obtain the maximum amount of information regarding threats as well as maximizing the masking effect obtained by launching and operating smoke grenades. The system is modular, easy to install and maintain. 0,4 - 0,7 µm VIS , 0,7 - 1,6 µm Near IR , 3,0 - 5,0 µm Mid IR , 8,0 - 14 µm Far IR , hazard class 1,4G UN 0303 , Temperature range -35°C to +63°C (Function) , -54°C to +71°C (Operational Storage) .

    DATA :
    Caliber 76 mm
    Overall dimension, max. 279x155x102 mm
    Total mass 5000 ± 50 g
    Initiation mode Electrical
    Launch distance (for 450 launch angle) 20 ÷ 45 m
    Supply voltage 18 V ÷ 32 V
    Power suplly:
          - non-initiation current     < 1,2 A
          - initiation current         max. 6 A
    Operating temperature -350C ÷ +630C
    Storage temperature in manufacturer package -510C ÷ +710C

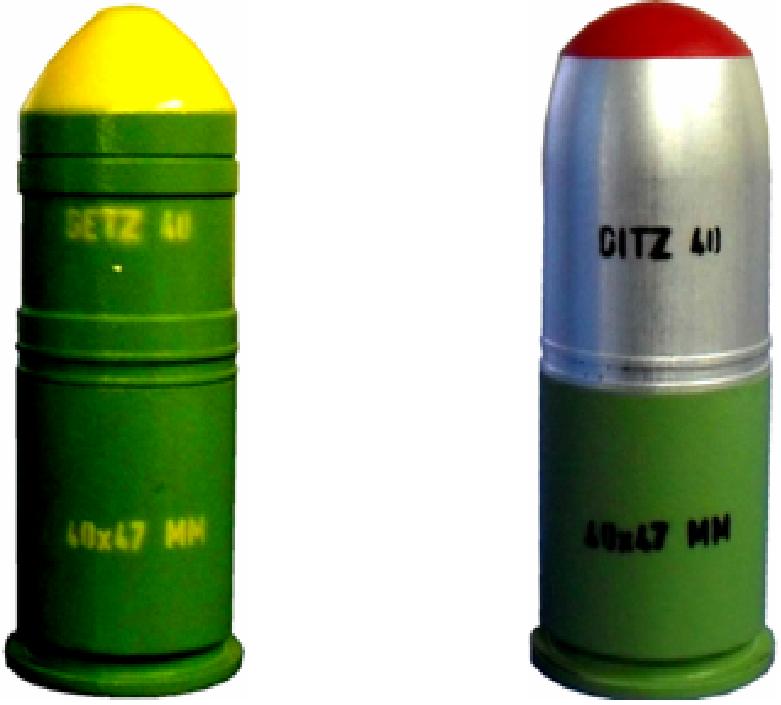

  • AMMUNITION CAL. 40 x 47 mm WITH EXPLOSIVE GRENADE WITH SELF-DESTRUCTION AND CAL. 40 x 47 mm WITH INERT GRENADE
    COMPATIBLE WITH ROMANIAN GRENADE LAUNCHER CAL. 40 mm MODEL 1977 ADAPTED TO SUPPORT WEAPON CAL. 7.62 mm MODEL 1963 .
    GENERAL SPECIFICATIONS FOR GETZ-40 mm GRENADE
    - WEIGHT OF EXPLOSIVE GRENADE 0.260 Kg ;
    - WEIGHT of INERT GRENADE 0.200 Kg ;
    - TOTAL LENGHT 105 mm ;
    - CARTRIGE TUBE LENGHT 47 mm ;
    - CALIBER 40 x 47 MM ;

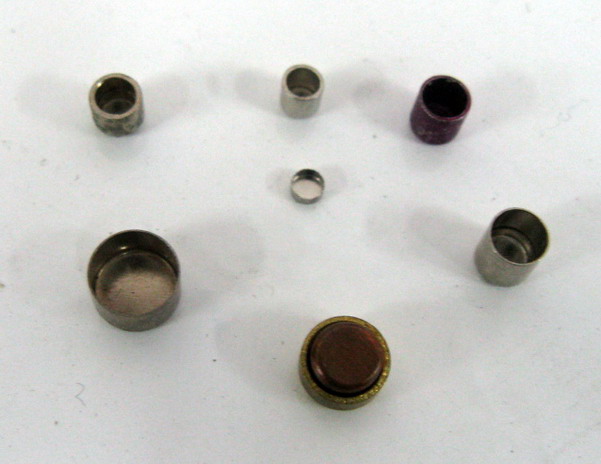

  • PRIMER CUPS
    PRODUCT DESTINATION: THE PRODUCTS ARE MEANT TO INITIATE THE FIRING CHAINS OF THE FUZES AND OTHER PYROTECHNICAL DEVICES.
    TECHNICAL CHARACTERISTICS:
    RGM : O 6,1 x 3,05 mm; 0,332 g;
    MG – 8 : O 3,05 x 3,2 mm; 0,105 g;
    KTM : O 5,71 x 3,33 mm; 0,385 g;
    KV – 11 : O 5,72 x 5,25 mm; 0,420 g;
    MD – 5 : O 3,85-0,1 x 4,0 mm; 0,200 g;
    KTD : O 5,71 x 3,33 mm; 0,374 g;            B 37 : O 3,05 x 2,25 mm; 0,080 g;
    SPA : O 4,6 x 2,57 mm; 0,125 g               SPA nr.1 : O 5,9 x 2,55 mm; 0,390 g;
    B – 23 : O 3,85 x 3,5 mm; 0,217 g;            T – 5 : O 4,25 x 4,6 mm; 0,260 g;
    EKV – 2 M : O 9,1 x 7,3 mm; 1,500 g;        CA nr.2 : O 3,85 x 4,0 mm; 0,192 g;
    MD – 35 – 2 : O 7,95 x 3,5 mm; 0,425 g.

  • TRACERS
    NR. 1, 2, 3A, 5, 6, 7, 8, 9, 10, 12, A90, A91, T40, T-19-M, OTK, TR-25.
    - BURNING TIME min. 4 - 25 s.
    - AVERAGE LIGHT INTENSITY 1500 - 18000 cd

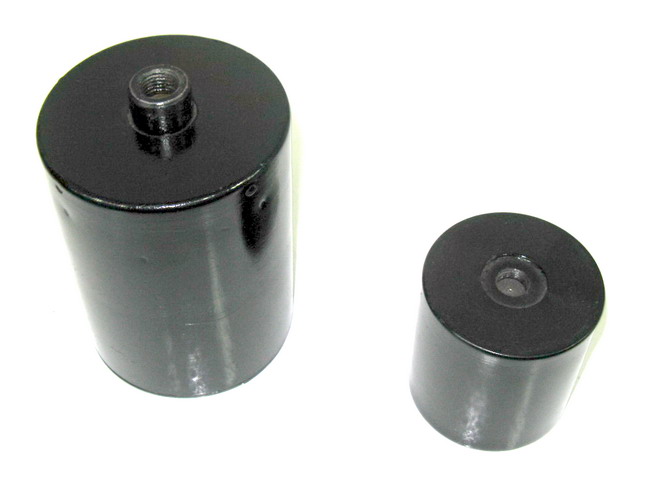

  • TORCES
    TORCH FOR AMMUNITION WITH LIGHT MINE 120 ( 82 ) mm
    - WEIGHT OF THE LIGHTING COMPOSITION 895 g;
    - WEIGHT TORCE WITH COMPOSITION 1.604 g;
    - AVERAGE LIGHT INTENSITY min. 500,000 ( 150,000 ) cd;
    - BURNING TIME min.35 s.
    TORCE FOR 122 mm ILLUMINATING ROUND
    - WEIGHT OF EVACUATION LOAD 0.060 kg;
    - WEIGHT OF THE LIGHTING COMPOSITION 102 B (3142) 0.910 (1.170) Kg;
    - WEIGHT TORCE WITH COMPOSITION B 102 (3142) 2.630 (2.900) kg;
    - AVERAGE LIGHT INTENSITY OF THE TORCE WITH COMPOSITION B 102 (3142) min. 800,000 (450.000) cd;
    - BURNING TIME FOR THE TORCE min. 25 s;
    - AVERAGE FALLING SPEED OF THE ANS. TORCE-PARACHUTE max. 10 m / s.

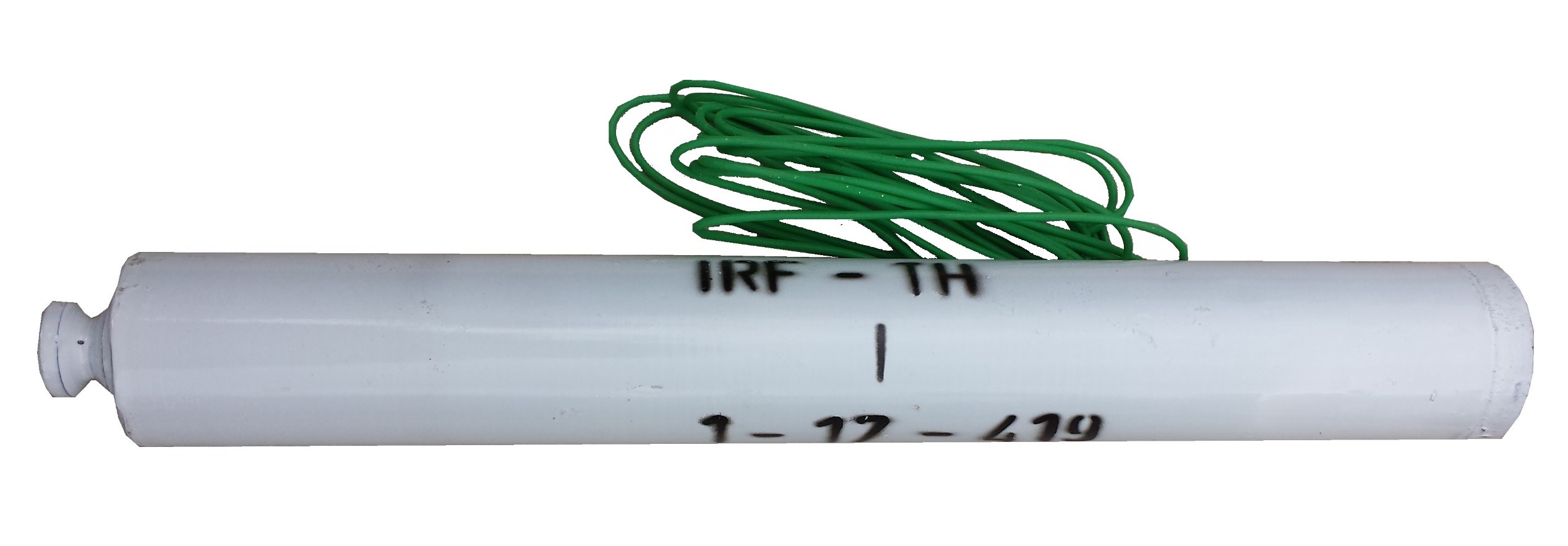

    INFRARED FLARE IRF-TH
    - Outer case : steel , Max. gross weight :max. 210 grams ,
    - Weight of the composition : aproximativ 119 grams ,
    - Dimensions: - charged flare diameter max. o 25,4 mm ,
                - flare length max. 200,8 mm ,
    - Operational speed : Up to 400 kts ,
    - Fuse head circuit resistance 1,25 ÷ 2,25 ohmi ,
    - Circuit test current : max. 30 milliamps/10 sec ,
    - Minimum Firing current : 1 amp/10 milisec ,
    - Burning time (static) : min. 60 de sec ,
    - power operation : min. 400 w/sr in the (2,9 ÷ 5,5) microns bandwidth ,
    - Storage conditions: - temperature between -32°C ÷ + 40°C , - relative humidity less than de 70% .

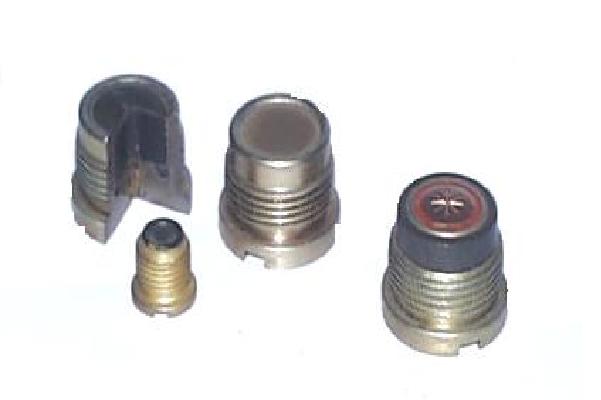

  • PRIMER SCREW
    KV – 5 U
    PRODUCT DESTINATION:
    EQUIPS THE ROUNDS: 57 mm ( A.A. S – 60); 85 mm ( A.T. md. D – 48); 130 mm ( M–46, type 59; 59–1 China)
    TECHNICAL CHARACTERISTICS:
    - WEIGHT OF PRIMER - 0.091 kg;
    - DIMENSIONS - O 30 x 23,8 mm ;
    - MAXIMUM PRESSURE - 3,750 kgf / cm2 ;
    - MASS OF PETARD CHARGE - 1.3 g;
    - MATERIAL OF BODY - STEEL.
    KV – 4
    PRODUCT DESTINATION:
    EQUIPS THE ROUNDS: 57 mm ( A.T.); 75 mm ( A.T. md. 40); 76 mm (md. 42 si T – 76 ); 85 mm ( md. 44; T – 34; A.A. md. 39); 122 mm (md.38 ; D – 30; 2S1); 152 mm ( md. 37; md.81).
    TECHNICAL CHARACTERISTICS:
    - WEIGHT OF PRIMER 0.069 kg; - DIMENSIONS O 30 x 23,8 mm
    - MAXIMUM PRESSURE 3,100 kgf / cm2 ;

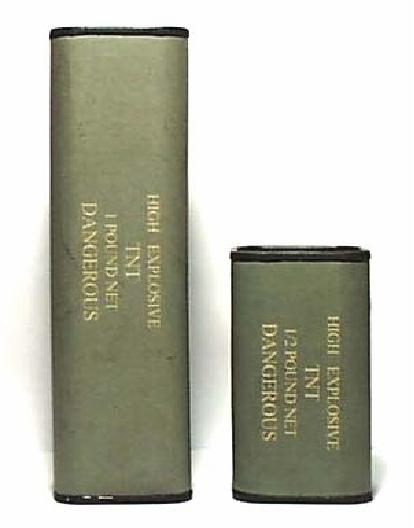

  • 1 LB AND 1 LB TNT BOOSTERS
    TECHNICAL CHARACTERISTICS:
    - LENGTH - 1LB 176 max - 1 LB 93,21max.
    - WEIGHT - 1 LB., 1 LB.
    - EXPLOSIVE CHARGE TNT
    - SPECIFIC DENSITY 1.46 ± 0.05g/cm3
    - DETONATOR TYPE CEA OR CEIN STAS 8136 – 89
    - IGNITION CURRENT 0,8 A
    - SAFETY CURRENTAT NON-OPERATING 0.18 FOR 5min
    - IGNITION IMPULSE 3.2mWs/?
    - SAFETY AT NON-OPERATING 0.8 mWs/?.
