Military Products

    122 mm ROCKETS :       (details)
    • 122 mm ROCKET ;
    • 122 mm EXTENDED RANGE ROCKET ( 40 χ 45 Km ) .
         WARHEADS FOR 122 mm ROCKETS :       (details)
    • HE ( TGAF - 5, COMPOSITION B ) ;
    • PREFORMED ELEMENTS .
         FUZES FOR 122 mm ROCKETS :       (details)
    • MULTIPLE FUNCTIONS FUZE MFF - 2T NEW ;
    • MRV - U ;
    • MRV - UBM FOR EXTENDED RANGE ROCKETS ;
    • PROXFU 2/PP ( collaboration with SC MIRSAND SRL) ;
    • PROXFU 2/FCC ( collaboration with SC MIRSAND SRL) .

    122 mm ARTILERY AMMUNITION :       (details)
    • 122 mm ILLUMINATING ROUND FOR THE 1938 MODEL HOWITZER NEW ;
    • 122 mm ILLUMINATING ROUND FOR THE D - 30 NEW ;
    • 122 mm HE ROUND FOR THE 1938 MODEL HOWITZER ;
    • 122 mm HE ROUND FOR THE D - 30 .
         FUZES FOR ARTILERY :       (details)
    • FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
    • FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS .

    ILLUMINATING BOMBS NEW :       (details)
    • 81 / 82 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 120 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 60 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT or time fuze PTF-3T ;
    • 81 / 82 mm ILLUMINATING BOMBS with superior performance (research - development) .
         FUZES FOR ILLUMINATING BOMBS :       (details)
    • TIME FUZE T – 1 for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ; ;
    • ELECTRONIC TIME FUZE ETF – 1MT for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ;
    • TIME FUZE PTF-3T for ammunition 60 mm with illuminating bomb (research - development) ;

    SMOKE AND MASKING SMOKE BOMBS NEW :       (details)
    • 81 / 82 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 120 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 60 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) .
         FUZE FOR SMOKE AND MASKING SMOKE BOMBS :       (details)
    • IMPACT FUZE PDF-4T for ammunition 60 mm, 81 / 82 mm, 120 mm with explosive or smoke and masking bomb (research - development) .

    GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS :       (details)
    • SMOKE AND MASKING GRENADE GFM - 76 (collaboration with S.C. Pro Optica S.A.) ;
    • Ammunition 40X47 mm with EXPLOSIVE GRENADE with self-destruction and ammunition 40X47 mm with INERT GRENADE;
    • IGNITION CAPS ;
    • TRACERS ;
    • TORCHES: 60 mm, 81 / 82 mm, 120 mm, 122 mm ;
    • PRIMER SCREWS ;
    • 1lb AND 1/2 LB TNT BOOSTERS .


           ILLUMINATING BOMBS NEW

    AMMUNITION BOMBS WITH PARACHUTE IS DESIGNED TO ILLUMINATE THE TARGET AT NIGHT OR UNDER LOW VISIBILITY CONDITIONS.

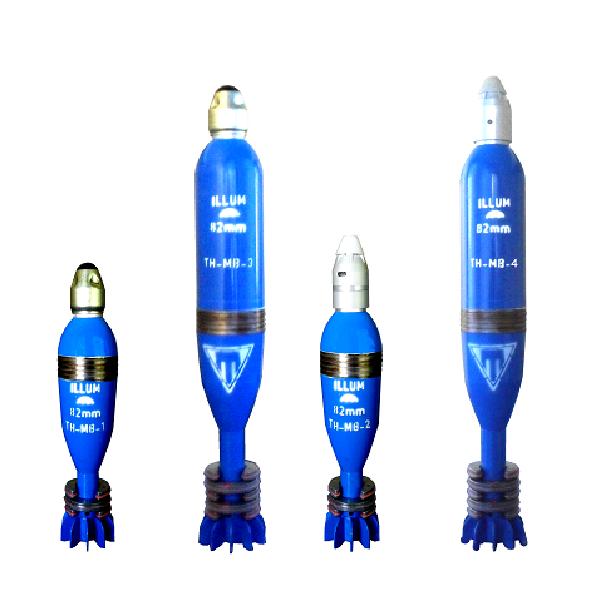

  • 81 / 82 mm ILLUMINATING BOMBS WITH T - 1 FUZE OR ELECTRONIC TIME FUZE ETF - 1MT

    MODELS :
    • 81 / 82 mm BOMB
      TECHNICAL FEATURES :
      MAXIMUM RANGE : 2.670 m ; MINIMUM RANGE : 220 m ; ILLUMINATION TIME (MIN.) : 35 s ; ILLUMINATION AREA IN DIAMETER : 400 m ; LIGHT INTENSITY : 200.000 C.D. or 500.000 C.D. ; STABILIZED DESCENT SPEED : 4.5 m/s ( APPROX. )
      WEIGHT ( WITH FUZE, W/OUT INCREMENTS ) : 3,49 Kg ; PROPULSION SYSTEM : IGNITION CARTRIDGE + 3 INCREMENTS ( FULL CHARGE ) ;

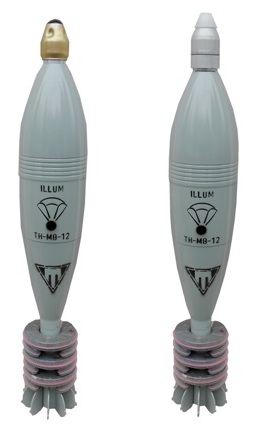

  • 120 mm ILLUMINATING BOMBS WITH T - 1 FUZE OR ELECTRONIC TIME FUZE ETF - 1MT

    PERFORMANCES:
    - MAXIMUM RANGE : 5500 m ;
    - MINIMUM RANGE : 1060 m
    - ILLUM. INTENSITY : 900000 candelas ( min.);
    - ILLUM. BURN TIME : 45 sec. ( min.);
    - STABILIZED DESCENT SPEED: 8 m / s ( max. ) .

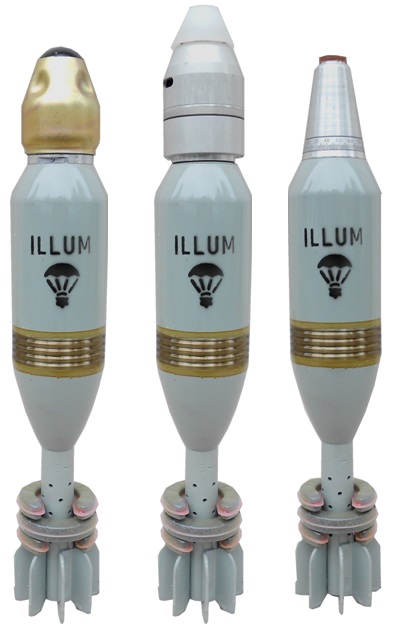

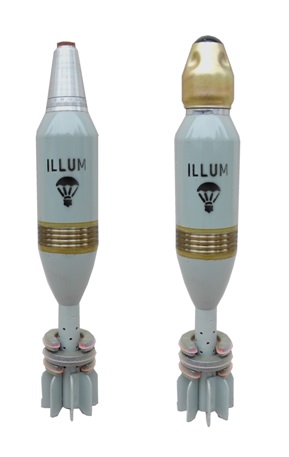

  • 60 mm ILLUMINATING BOMBS WITH T - 1 FUZE OR ELECTRONIC TIME FUZE ETF - 1MT OR MECHANICAL-PYROTECHNICAL TIME FUZE PTF - 3T

    PERFORMANCES:
    - MAXIMUM RANGE: 3000 m ;
    - MINIMUM RANGE: 190 m ;
    - ILLUM. INTENSITY: 200000 candelas ( min. ) ;
    - ILLUM. BURN TIME: 25 s ( min. ) ;
    - STABILIZED DESCENT SPEED: 4.5 m / s ( max. ) .
