Military Products

    122 mm ROCKETS :       (details)
    • 122 mm ROCKET ;
    • 122 mm EXTENDED RANGE ROCKET ( 40 χ 45 Km ) .
         WARHEADS FOR 122 mm ROCKETS :       (details)
    • HE ( TGAF - 5, COMPOSITION B ) ;
    • PREFORMED ELEMENTS .
         FUZES FOR 122 mm ROCKETS :       (details)
    • MULTIPLE FUNCTIONS FUZE MFF - 2T NEW ;
    • MRV - U ;
    • MRV - UBM FOR EXTENDED RANGE ROCKETS ;
    • PROXFU 2/PP ( collaboration with SC MIRSAND SRL) ;
    • PROXFU 2/FCC ( collaboration with SC MIRSAND SRL) .

    122 mm ARTILERY AMMUNITION :       (details)
    • 122 mm ILLUMINATING ROUND FOR THE 1938 MODEL HOWITZER NEW ;
    • 122 mm ILLUMINATING ROUND FOR THE D - 30 NEW ;
    • 122 mm HE ROUND FOR THE 1938 MODEL HOWITZER ;
    • 122 mm HE ROUND FOR THE D - 30 .
         FUZES FOR ARTILERY :       (details)
    • FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
    • FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS .

    ILLUMINATING BOMBS NEW :       (details)
    • 81 / 82 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 120 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 60 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT or time fuze PTF-3T ;
    • 81 / 82 mm ILLUMINATING BOMBS with superior performance (research - development) .
         FUZES FOR ILLUMINATING BOMBS :       (details)
    • TIME FUZE T – 1 for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ; ;
    • ELECTRONIC TIME FUZE ETF – 1MT for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ;
    • TIME FUZE PTF-3T for ammunition 60 mm with illuminating bomb (research - development) ;

    SMOKE AND MASKING SMOKE BOMBS NEW :       (details)
    • 81 / 82 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 120 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 60 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) .
         FUZE FOR SMOKE AND MASKING SMOKE BOMBS :       (details)
    • IMPACT FUZE PDF-4T for ammunition 60 mm, 81 / 82 mm, 120 mm with explosive or smoke and masking bomb (research - development) .

    GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS :       (details)
    • SMOKE AND MASKING GRENADE GFM - 76 (collaboration with S.C. Pro Optica S.A.) ;
    • Ammunition 40X47 mm with EXPLOSIVE GRENADE with self-destruction and ammunition 40X47 mm with INERT GRENADE;
    • IGNITION CAPS ;
    • TRACERS ;
    • TORCHES: 60 mm, 81 / 82 mm, 120 mm, 122 mm ;
    • PRIMER SCREWS ;
    • 1lb AND 1/2 LB TNT BOOSTERS .

         FUZES FOR ILLUMINATING BOMBS

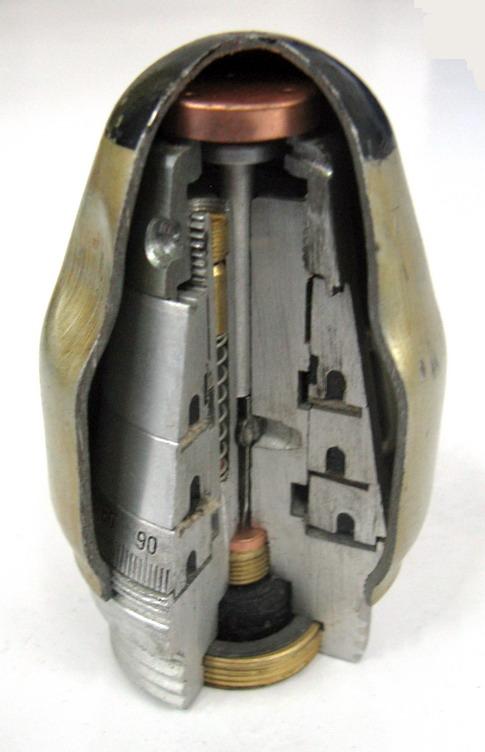

  • FUZE T 1
    THE T - 1 TIME FUZE OUTFITS ILLUMINATING PROJECTILE WITH PARACHUTE.
    - LENGTH OF FUZE 81 mm;
    - WEIGHT OF FUZE 232 g;
    PERFORMANCES:
    - OPERATION MODE - WITH TIME DELAY OR IMPACT;
    - MAXIMUM TIME DELAY OF 125 DIVISIONS SETTINGS: 46,45 s.

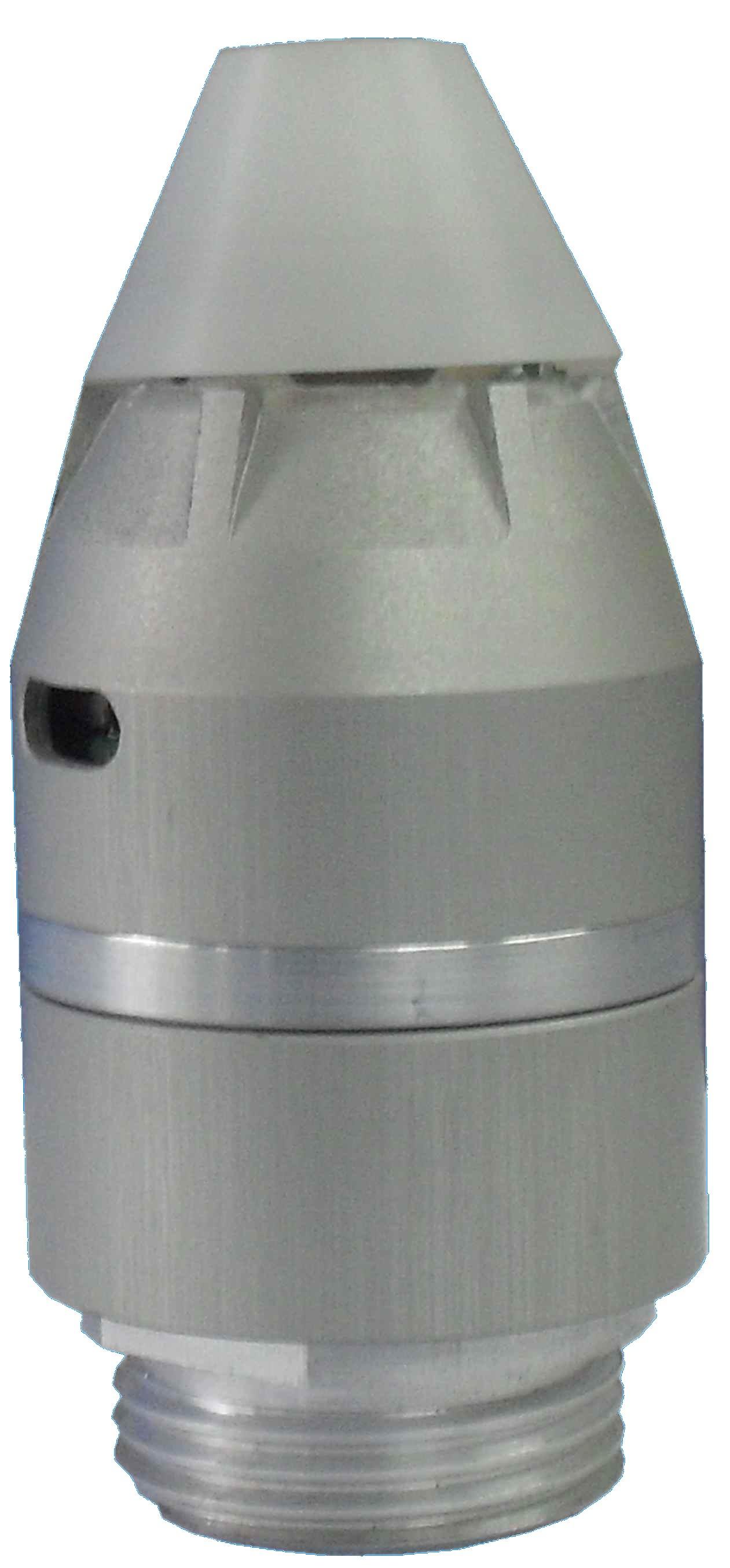

  • ELECTRONIC TIME FUSE ETF-1MT NEW
    THE MAIN PURPOSE OF THE FUZE IS TO INCREASE OF THE PERFORMANCE PRECISION FOR AMMUNITION CAL. 60 mm , 81 / 82 mm AND 120 mm WITH ILLUMINATION MINE.
    PERFORMANCE FEATURES :
    - ADJUSTABLE SETTING TIME :3.5 s χ 99.9 s, WITH INCREMENT OF 0.1 s;
    - BARREL SAFETY DISTANCE : MIN. 100 m;
    - ARMING CONDITIONS: MIN. 400 G FOR 1 ms; AIR SPEED MIN. 30 m / s;
    - IN THE CONDITION OF THE ARMED FUSE, BEFORE THE EXPIRATION OF THE TIME, WHICH WAS SET, THE FUSE MUST NOT FUNCTION. IT CAN FUNCTION ONLY AT IMPACT;
    - IF THE PRODUCT DOES NOT OPERATE AT THE TIME WHICH WAS SET, IT MUST FUNCTION AT IMPACT; CUMULATED THE NUMBER OF FUNCTIONS MUST BE HIGHER THAN 98 %;
    - THE FUSES MUST BE SAFE AT HANDLING BOTH INDIVIDUALLY AND MOUNTED ON THE ILLUMINATION MINE.

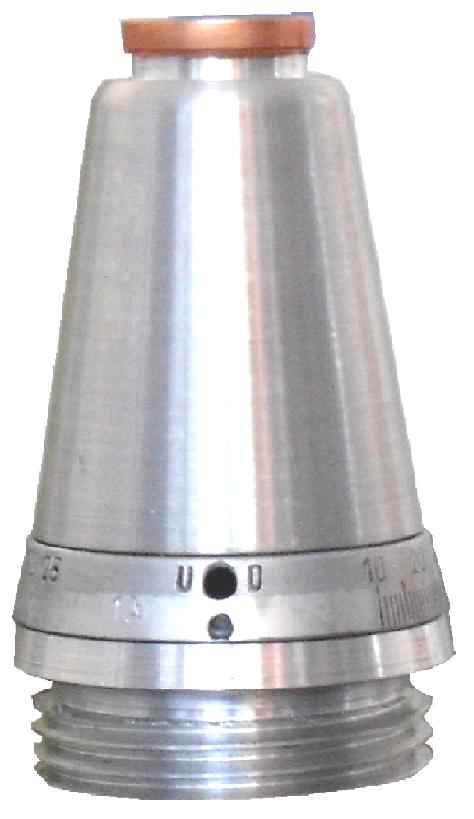

  • MECHANICAL-PYROTECHNICAL TIME FUZE PTF-3T NEW
    THE PTF-3T FUSE IS DESTINED TO EQUIP THE AMMUNITION WITH ILLUMINATION BOMB FOR THE LAUNCHERS CALIBRE 60 MM. IT IS A HEAD FUSE WITH TIME AND IMPACT FUNCTIONING; IT HAS AN PLATE WITH A DISTANCES SCALE GRADED IN DIVISIONS, NUMBERED EVERY 5 FIGURES, FROM 10 TO 125 DIVISIONS. THE BURNING TIME OF PYROTECHNIC BELTS IS FROM 10 SECONDS TO 50 SECONDS, ACCORDING TO THE ADJUSTMENT. THE FUSE PTF-3T IS MADE OF: PERCUSSIVE MECHANISM FOR INSTANT FUNCTIONING, EXPLOSIVE DEVICE, POWDER PRIME AND END BUSHING.
    PERFORMANCE FEATURES:
    - FUZE LENGTH MAX. 72 mm ;
    - LENGTH OF PART MOUNTED IN OGIVE 11.57...12.6 mm ;
    - DIAMETER MAX. 60 mm ;
    - THREAD OF THE PART MOUNTED IN OGIVE SP 36.14x10/inch ;
