Military Products

    122 mm ROCKETS :       (details)
    • 122 mm ROCKET ;
    • 122 mm EXTENDED RANGE ROCKET ( 40 45 Km ) .
         WARHEADS FOR 122 mm ROCKETS :       (details)
    • HE ( TGAF - 5, COMPOSITION B ) ;
    • PREFORMED ELEMENTS .
         FUZES FOR 122 mm ROCKETS :       (details)
    • MULTIPLE FUNCTIONS FUZE MFF - 2T NEW ;
    • MRV - U ;
    • MRV - UBM FOR EXTENDED RANGE ROCKETS ;
    • PROXFU 2/PP ( collaboration with SC MIRSAND SRL) ;
    • PROXFU 2/FCC ( collaboration with SC MIRSAND SRL) .

    122 mm ARTILERY AMMUNITION :       (details)
    • 122 mm ILLUMINATING ROUND FOR THE 1938 MODEL HOWITZER NEW ;
    • 122 mm ILLUMINATING ROUND FOR THE D - 30 NEW ;
    • 122 mm HE ROUND FOR THE 1938 MODEL HOWITZER ;
    • 122 mm HE ROUND FOR THE D - 30 .
         FUZES FOR ARTILERY :       (details)
    • FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
    • FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS .

    ILLUMINATING BOMBS NEW :       (details)
    • 81 / 82 mm ILLUMINATING BOMBS with time fuze T 1 or electronic time fuze ETF 1MT ;
    • 120 mm ILLUMINATING BOMBS with time fuze T 1 or electronic time fuze ETF 1MT ;
    • 60 mm ILLUMINATING BOMBS with time fuze T 1 or electronic time fuze ETF 1MT or time fuze PTF-3T ;
    • 81 / 82 mm ILLUMINATING BOMBS with superior performance (research - development) .
         FUZES FOR ILLUMINATING BOMBS :       (details)
    • TIME FUZE T 1 for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ; ;
    • ELECTRONIC TIME FUZE ETF 1MT for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ;
    • TIME FUZE PTF-3T for ammunition 60 mm with illuminating bomb (research - development) ;

    SMOKE AND MASKING SMOKE BOMBS NEW :       (details)
    • 81 / 82 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 120 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 60 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) .
         FUZE FOR SMOKE AND MASKING SMOKE BOMBS :       (details)
    • IMPACT FUZE PDF-4T for ammunition 60 mm, 81 / 82 mm, 120 mm with explosive or smoke and masking bomb (research - development) .

    GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS :       (details)
    • SMOKE AND MASKING GRENADE GFM - 76 (collaboration with S.C. Pro Optica S.A.) ;
    • Ammunition 40X47 mm with EXPLOSIVE GRENADE with self-destruction and ammunition 40X47 mm with INERT GRENADE;
    • IGNITION CAPS ;
    • TRACERS ;
    • TORCHES: 60 mm, 81 / 82 mm, 120 mm, 122 mm ;
    • PRIMER SCREWS ;
    • 1lb AND 1/2 LB TNT BOOSTERS .






                       122 mm ROCKETS

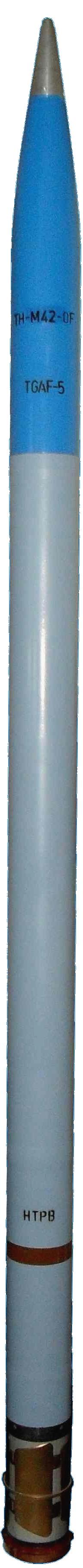

  • 122 mm EXTENDED RANGE HE ROCKET

    SCOPE OF USAGE:
    TO SUPPRESS AND ANNIHILATE THE CONCENTRATED TARGETS; FIRED WITH BM 21, APRA40, RM70, LAROM LAUNCHER TYPE.
    TECHNICAL CHARACTERISTICS
    - FUZE MRV-UBM, PROXFU 2/PP, PROXFU OR MULTIFUNCTION FUZE ;
    - FILLER TNT/RDX/WAX/AL ; - WARHEAD: HE, PREFORMED ELEMENTS ;
    - ROCKET MOTOR WITH COMPOSITE POWDER;
    - LENGTH OF ROCKET 2900 mm ;
    - WEIGHT OF ROCKET 65 kg ;
    PERFORMANCES
    - MAXIMUM RANGE: 40 45 Km; ACCORDING TO THE WARHEAD
    - MUZZLE VELOCITY 1230 m/s;
    - OPERATING TEMPERATURE 400C +500C.

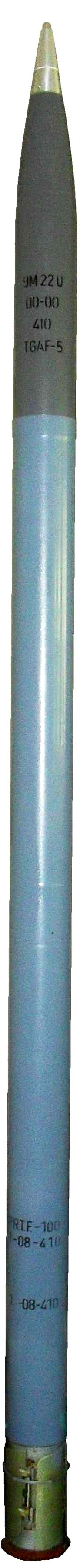

  • 122 mm ROCKET

    SCOPE OF USAGE:
    SUPPRESS AND ANNIHILATE THE CONCENTRATED TARGETS; FIRED WITH BM 21, APRA40, RM70, LAROM LAUNCHER TYPE.
    TECHNICAL CHARACTERISTICS
    - FUZE MRV-U OR PROXFU 2/PP, PROXFU 2/FCC; MULTIFUNCTION FUZE ;
    - FILLER TNT/RDX/WAX/AL/ ;
    - WARHEAD: HE, PREFORMED ELEMENTS ;
    - ROCKET MOTOR SOLID PROPELLANT;
    - LENGTH OF ROCKET 2881 mm ;
    - WEIGHT OF ROCKET 66.6 kg ;
    PERFORMANCES
    - MAXIMUM RANGE 20,4 km ;
    - MUZZLE VELOCITY 690 m/s ;
    - OPERATING TEMPERATURE 400C +500C .
