Military Products

    122 mm ROCKETS :       (details)
    • 122 mm ROCKET ;
    • 122 mm EXTENDED RANGE ROCKET ( 40 χ 45 Km ) .
         WARHEADS FOR 122 mm ROCKETS :       (details)
    • HE ( TGAF - 5, COMPOSITION B ) ;
    • PREFORMED ELEMENTS .
         FUZES FOR 122 mm ROCKETS :       (details)
    • MULTIPLE FUNCTIONS FUZE MFF - 2T NEW ;
    • MRV - U ;
    • MRV - UBM FOR EXTENDED RANGE ROCKETS ;
    • PROXFU 2/PP ( collaboration with SC MIRSAND SRL) ;
    • PROXFU 2/FCC ( collaboration with SC MIRSAND SRL) .

    122 mm ARTILERY AMMUNITION :       (details)
    • 122 mm ILLUMINATING ROUND FOR THE 1938 MODEL HOWITZER NEW ;
    • 122 mm ILLUMINATING ROUND FOR THE D - 30 NEW ;
    • 122 mm HE ROUND FOR THE 1938 MODEL HOWITZER ;
    • 122 mm HE ROUND FOR THE D - 30 .
         FUZES FOR ARTILERY :       (details)
    • FUZE T 7 FOR 122 mm ILUMINATING ROUNDS ;
    • FUZE RGM 2, V 429E, V 429 FOR ARTILERY HE ROUNDS .

    ILLUMINATING BOMBS NEW :       (details)
    • 81 / 82 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 120 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT ;
    • 60 mm ILLUMINATING BOMBS with time fuze T – 1 or electronic time fuze ETF – 1MT or time fuze PTF-3T ;
    • 81 / 82 mm ILLUMINATING BOMBS with superior performance (research - development) .
         FUZES FOR ILLUMINATING BOMBS :       (details)
    • TIME FUZE T – 1 for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ; ;
    • ELECTRONIC TIME FUZE ETF – 1MT for ammunition 60 mm, 81 / 82 mm, 120 mm with illuminating bomb ;
    • TIME FUZE PTF-3T for ammunition 60 mm with illuminating bomb (research - development) ;

    SMOKE AND MASKING SMOKE BOMBS NEW :       (details)
    • 81 / 82 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 120 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) ;
    • 60 mm SMOKE AND MASKING BOMB with impact fuze PDF-4T (research - development) .
         FUZE FOR SMOKE AND MASKING SMOKE BOMBS :       (details)
    • IMPACT FUZE PDF-4T for ammunition 60 mm, 81 / 82 mm, 120 mm with explosive or smoke and masking bomb (research - development) .

    GRENADES AND DIFFERENT TYPES OF PYROTECHNIC ELEMENTS :       (details)
    • SMOKE AND MASKING GRENADE GFM - 76 (collaboration with S.C. Pro Optica S.A.) ;
    • Ammunition 40X47 mm with EXPLOSIVE GRENADE with self-destruction and ammunition 40X47 mm with INERT GRENADE;
    • IGNITION CAPS ;
    • TRACERS ;
    • TORCHES: 60 mm, 81 / 82 mm, 120 mm, 122 mm ;
    • PRIMER SCREWS ;
    • 1lb AND 1/2 LB TNT BOOSTERS .



           122 mm ARTILERY AMMUNITION

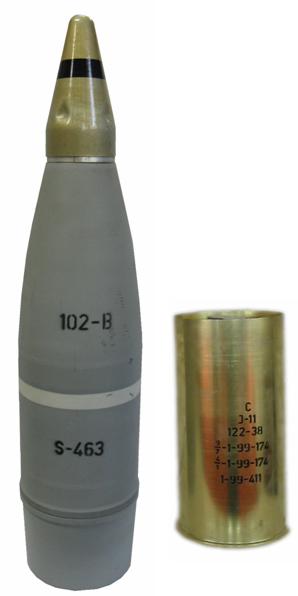

  • 122 mm HE ILLUMINATING ROUND FOR THE 1938 MODEL HOWITZER NEW
    SCOPE OF USAGE:
    THIS ROUND IS USED TO ILLUMINATE ENCOUNTERING AREA AT NIGHT , TO OBSERVE THE FIELD AND FIRING EFFECT.
    TECHNICAL CHARACTERISTICS:
    - TIME FUZE T-7
    - TORCH WITH PARACHUTE
    - PROPELLANT SINGLEBASE
    - PRIMER KV-4 OR KV-U
    - LENGTH OF ROUND: 760 mm
    - WEIGHT OF PROJECTILE: 27.600 kg
    PERFORMANCES:
    - MAXIMUM RANGE FULL CHARGE 11,380 m
    - MUZZLE VELOCITY 515 m/s
    - LUMINOUS INTENSITY min . 800,000 cd .
    - BURNING TIME min 25 s
    - FULL SPEED OF PARACHUTE 10 m/s
    - OPERATING TEMPERATURE : –400C χ +500C

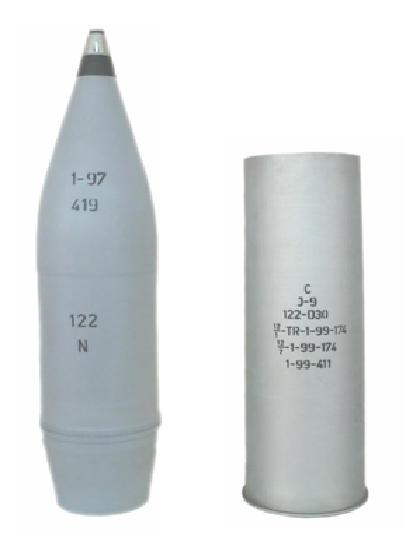

  • 122 mm ILLUMINATING ROUND FOR THE D 30 MODEL HOWITZER NEW
    TECHNICAL CHARACTERISTICS:
    - TIME FUZE T-7
    - TORCH WITH PARACHUTE
    - PROPELLANT SINGLEBASE
    - PRIMER KV-4 OR KV-U
    - LENGTH OF ROUND: 760 mm
    - WEIGHT OF PROJECTILE: 27.600 kg
    PERFORMANCES:
    - MAXIMUM RANGE FULL CHARGE 11,380 m
    - MUZZLE VELOCITY 515 m/s
    - LUMINOUS INTENSITY min . 800,000 cd .
    - BURNING TIME min 25 s
    - FULL SPEED OF PARACHUTE 10 m/s
    - OPERATING TEMPERATURE : –400C χ +500C

  • 122 mm HE ROUND

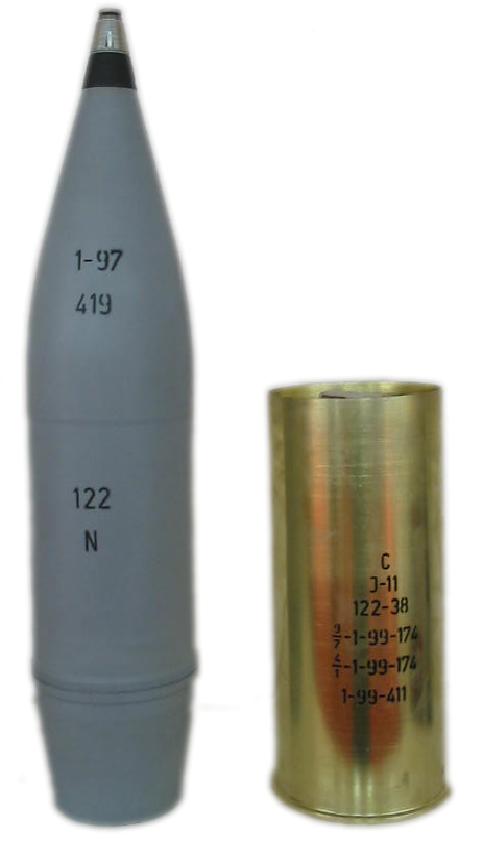

    122 mm HE ROUND FOR THE 1938 MODEL HOWITZER
    TECHNICAL FEATURES:
    - TYPE NONCOUPLED; - ROUND MASS 27.340 kg; - MASS OF PROPELLING CHARGE TYPE 9 / 7 + 4 / 1 + VTH – 10; ~ 2.136 kg - CALIBRE 122 mm; - LENGHT OF THE COMPLETE ROUND 780.00 mm; - TOTAL LENGHT OF THE CARTRIGE CASE 285 mm.
    PERFORMANCES:
    - MAXIMUM RANGE 11,800 m; - INITIAL SPEED (complete charge) 515 m / s;
    - speed at charge I 458 m / s; - speed at charge II 402 m / s; - speed at charge III 346 m / s; - speed at charge IV 290 m / s; - speed at charge V 269 m / s; - speed at charge VI 248 m / s;
    - MAXIMUM PRESSION (average of a round salvo) 2,350 kgf/cm2;

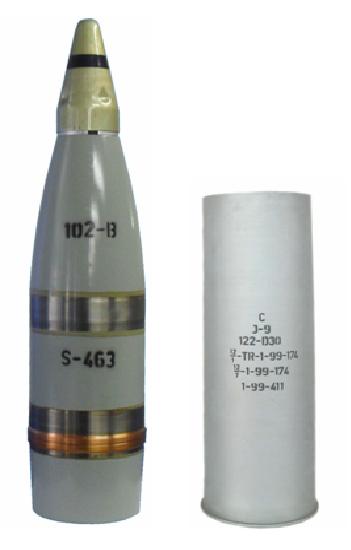

  • 122 mm HE ROUND FOR THE D-30 HOWITZER
    TECHNICAL FEATURES:
    - CALIBRE 122 mm; - TYPE NONCOUPLED;
    - WEIGHT OF LAUNCHING CHARGE - full charge 3.8 kg; - WEIGHT OF LAUNCHING CHARGE – reduced charge 2,430 kg;
    PERFORMANCES:
    - MAXIMUM RANGE, full charge 15,290 m; - MAXIMUM RANGE, reduced charge 12,470 m;
    - INITIAL SPEED, full charge 690 m/ s; - INITIAL SPEED, reduced charge 565 m/s;
    - PRESSURE, complete charge 2500 Kgf/cm2; - PRESSURE, reduced charge 1950 Kgf/cm2;
